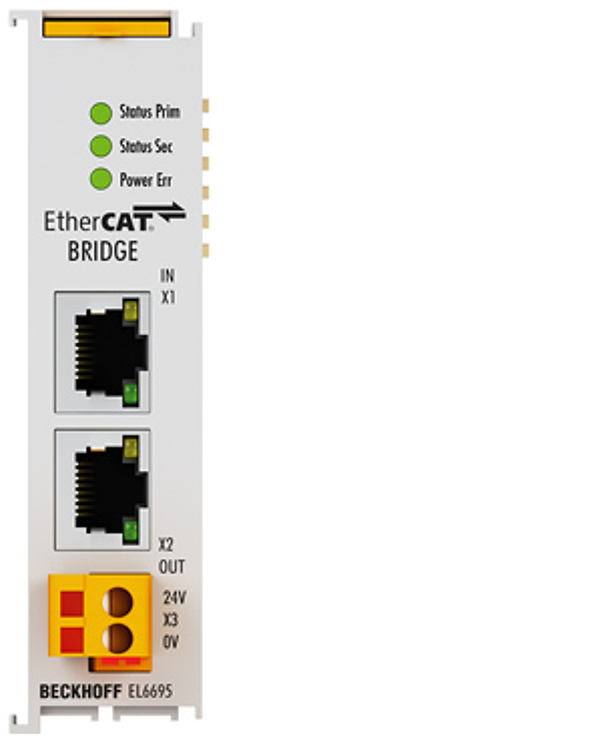

Article image EL6695

Beckhoff EL6695

EL6695 | EtherCAT bridge terminal

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL6695 EtherCAT bridge terminal enables real-time data exchange between EtherCAT Terminal strands with different masters. Asynchronous communication via AoE, FoE, EoE, NPI, etc. is also supported. Synchronisation of distributed clocks is possible in both directions. The EL6695 differs from the EL6692 (which will continue to be available) in terms of a flexible CoE configuration, a device emulation option and a significant increase in data throughput. A convenient configuration interface is available in the TwinCAT System Manager, as with the EL6692. The power supply for the secondary side (RJ45) is via an external connection, the primary side is supplied via the E-bus. The bridge terminal can also be used for integrating a subordinate PC system as an EtherCAT slave.

Technical parameters

Technology: primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out
Ports: primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output
Function: EtherCAT distributed clock synchronisation, data exchange
Cable length: 100 m 100BASE-TX, secondary port
Hardware diagnosis: status LEDs
Power supply: primary: via the E-bus, secondary: via connector, 24 V
Distributed clocks: yes
Electrical isolation: 500 V (E-bus/secondary side)
Current consumption: primary: E-bus 400 mA; secondary: 70 mA/24 V
Bit width in the process image: max. 3 kbyte per direction (dependent on the EtherCAT master, TwinCAT currently max. 1400 byte)
Special features: usable in TwinCAT as a reference clock, synchronous data exchange, flexible PDO mapping, supports AoE, EoE, FoE, VoE
Weight: approx. 75 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Approvals: CE, UL
