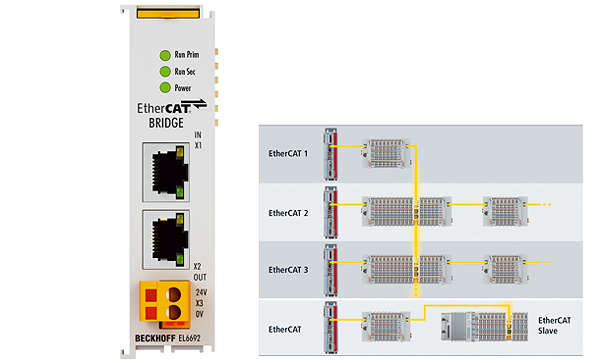

Beckhoff EL6692
EL6692 | EtherCAT bridge terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EtherCAT bridge terminal EL6692 enables real-time data exchange between EtherCAT strands with different masters. It also enables synchronisation of the distributed clocks of the individual strands. The power supply on the primary side (E-bus) comes from the E-bus, on the secondary side (RJ45) via an external connection. If several EL6692 are used, data traffic to the terminals on the other side can continue in the event of a power supply failure on one side. The bridge terminal can also be used for integrating a subordinate PC system as an EtherCAT slave.
Technical parameters
| Technology: | primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out |
| Ports: | primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output |
| Function: | EtherCAT distributed clock synchronisation, data exchange |
| Cable length: | 100 m 100BASE-TX, secondary port |
| Hardware diagnosis: | status LEDs |
| Power supply: | primary: via the E-bus, secondary: via connector |
| Distributed clocks: | yes |
| Electrical isolation: | 500 V (E-bus/secondary side) |
| Current consumption: | E-bus: 120 mA; external: 60 mA/24 V (see documentation) |
| Bit width in the process image: | 16 bit SYNC input + IO input/output, max. 480 bytes in each direction |
| Current consumption power contacts: | – |
| Current consumption E-bus: | 120 mA (E-bus), typ. 60 mA/24 V (external) |
| Special features: | usable in TwinCAT as a reference clock, supports ADS over EtherCAT (AoE) |
| Weight: | approx. 75 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
