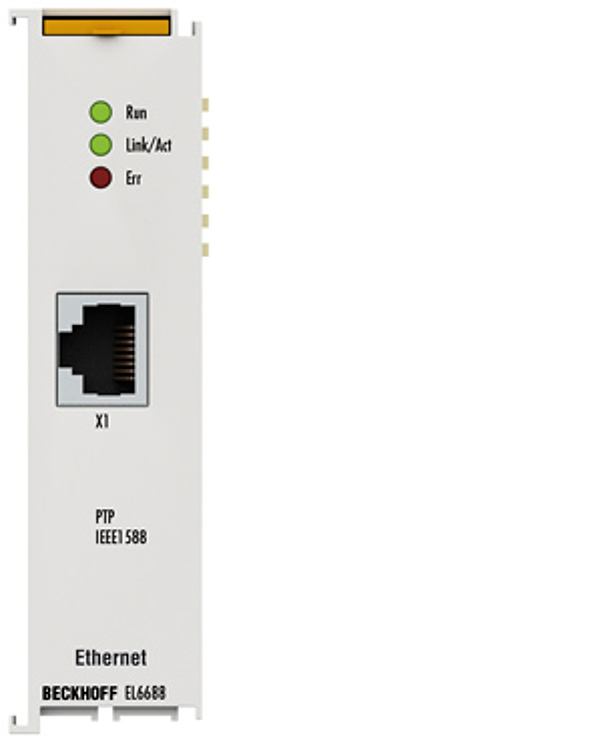

Beckhoff EL6688
EL6688 | IEEE 1588 external synchronisation interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6688 EtherCAT Terminal presents itself as a device in the IEEE 1588 synchronisation system with support for PTPv1 (IEEE 1588-2002) and PTPv2 (IEEE 1588-2008) based on Ethernet.
Technical parameters
| Number of Ethernet ports: | 1 |
| Bus system: | Ethernet (IEEE 802.3) |
| Ethernet interface: | 10BASE-T/100BASE-TX Ethernet with 1 x RJ45 |
| Data transfer rates: | 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings |
| Cable length: | up to 100 m twisted pair |
| Hardware diagnosis: | status LEDs |
| Power supply: | via the E-bus |
| Distributed clocks: | yes |
| Electrical isolation: | 500 V (E-bus/Ethernet) |
| Protocol: | PTPv1 (IEEE 1588-2002), PTPv2 (IEEE 1588-2008) |
| Configuration: | no |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 310 mA |
| Special features: | usable in TwinCAT as a reference clock |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
