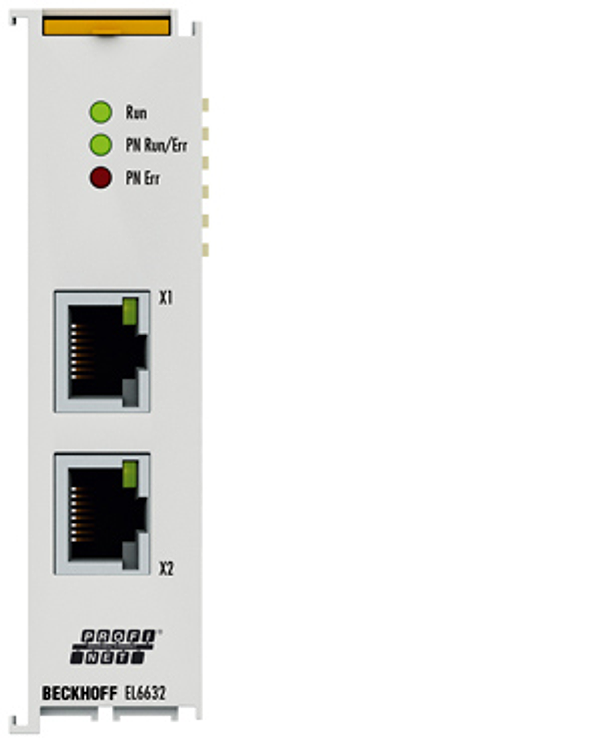

Article image EL6632

Beckhoff EL6632

EL6632 | PROFINET IRT controller

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL6632 PROFINET IRT controller terminal offers the complete RT (real-time) or IRT (isochronous real-time) functionality and a wide range of diagnostic options. All services in accordance with Conformance Class C are supported. Depending on the cycle time, up to five PROFINET IRT or up to 15 PROFINET RT devices can be operated at the EL6632 in a line topology.

Technical parameters

Technology: PROFINET IRT
Number of ports/channels: 2 (switched)
Ethernet interface: 100BASE-TX Ethernet with 2 x RJ45
Fieldbus: PROFINET IRT controller
Cable length: up to 100 m twisted pair
Hardware diagnosis: status LEDs
Power supply: via the E-bus
Electrical isolation: 500 V (E-bus/Ethernet)
Max. number of IRT-capable devices: 5 (depending on the cycle time and number of data)
Max. number of RT-capable devices: 15 (depending on the cycle time and number of data)
Minimum IRT cycle: 500 µs
Minimum RT cycle: 1 ms
Conformance class: C
Protocol: RT or IRT
Driver: TwinCAT 2.11
Configuration: via EtherCAT master
Current consumption E-bus: typ. 400 mA
Special features: Conformance Class C, max. 5 IRT devices, max. 15 RT devices, min. 500 μs IRT cycle, min. 1 ms RT cycle
Weight: approx. 75 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/see documentation
Approvals/markings: CE, UL, ATEX
Ex-Marking: II 3 G Ex nA IIC T4 Gc
