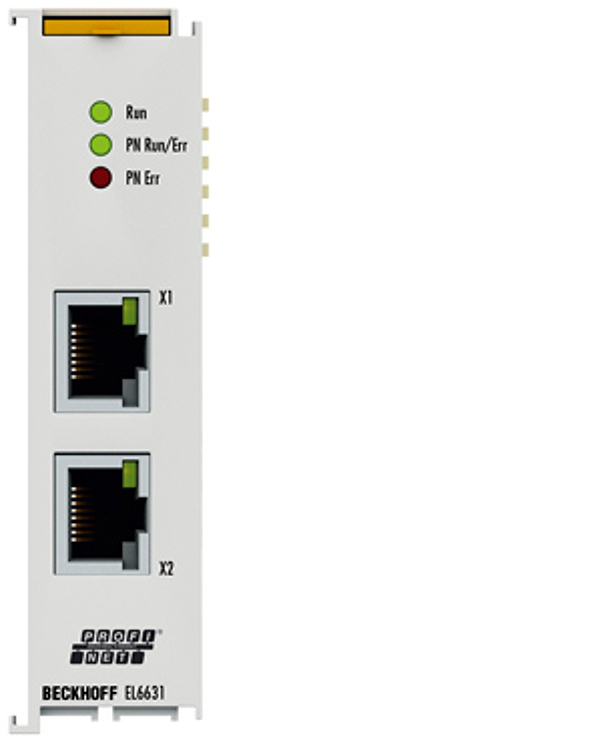

Beckhoff EL6631
EL6631 | PROFINET RT controller/device terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6631 PROFINET RT controller (master) terminal supports the complete real-time function (RT) as well as extensive diagnostic possibilities. All services in accordance with Conformance Class B are supported. Up to 15 PROFINET RT devices can be projected on the EL6631.
Technical parameters
| Technology: | PROFINET RT |
| Number of ports/channels: | 2 (switched) |
| Ethernet interface: | 100BASE-TX Ethernet with 2 x RJ45 |
| Fieldbus: | PROFINET RT controller |
| Cable length: | up to 100 m twisted pair |
| Hardware diagnosis: | status LEDs |
| Power supply: | via the E-bus |
| Electrical isolation: | 500 V (E-bus/Ethernet) |
| Protocol: | RT |
| Configuration: | via EtherCAT master |
| Current consumption E-bus: | typ. 400 mA |
| Special features: | LLDP, SNMP, Conformance Class B, max. 15 RT devices, min. 1 ms RT cycle |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals: | CE, UL, Ex |
