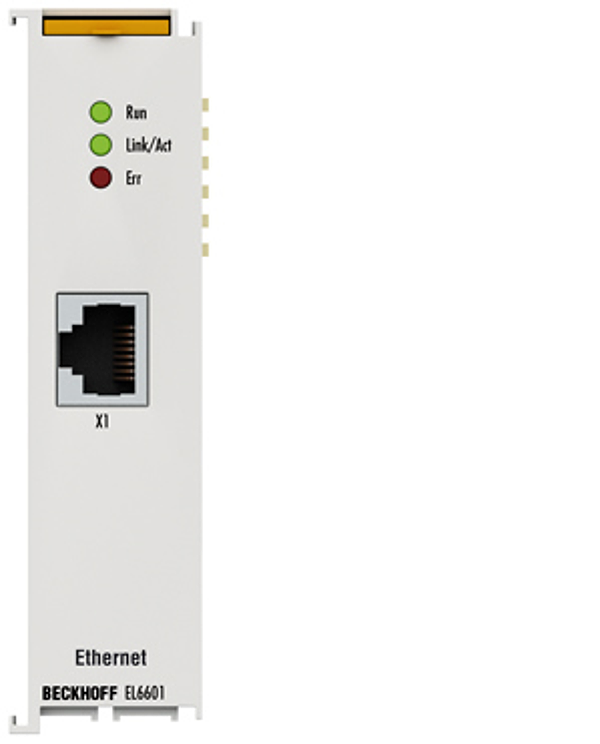

Beckhoff EL6601
EL6601 | Ethernet switch port terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6601 Ethernet switch port terminal is used for the decentralised connection of Ethernet devices to the EtherCAT Terminal network. The EtherCAT system relays the Ethernet communication of the connected devices fully transparent and collision-free.
Technical parameters
| Number of Ethernet ports: | 1 |
| Bus system: | all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode |
| Ethernet interface: | 10BASE-T/100BASE-TX Ethernet with 1 x RJ45 |
| Data transfer rates: | 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings |
| Cable length: | up to 100 m twisted pair |
| Hardware diagnosis: | status LEDs |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Electrical isolation: | 500 V (E-bus/Ethernet) |
| Protocol: | all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode |
| Configuration: | no |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 310 mA |
| Special features: | support of RT Ethernet, publisher/subscriber, DHCP/BootP address allovation (1 device) |
| Weight: | approx. 75 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex, IECEx |
