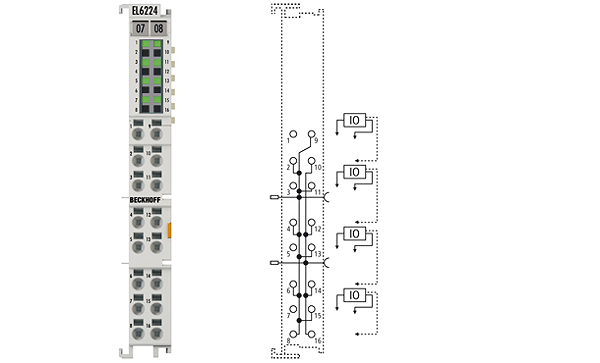

EL6224 | IO-Link terminal

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL6224 IO-Link terminal enables connection of up to four IO-Link devices, e.g. actuators, sensors or combinations of both. A point-to-point connection is used between the terminal and the device. The terminal is parameterised via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus level and the sensor, allowing parameterisation information to be exchanged bidirectionally via the IO-Link connection. The parameterisation of the IO-Link devices with service data can be done from TwinCAT via ADS or very conveniently via the integrated IO-Link configuration tool.

Technical parameters

Technology: IO-Link input/output
Specification version: IO-Link V1.1
IO-Link interfaces: 4
Field voltage: 24 V DC via power contacts
Connection: 3-wire
Data transfer rates: 4.8 kbaud, 38.4 kbaud and 230.4 kbaud
Cable length: max. 20 m
Power supply: via E-bus and power contacts
Electrical isolation: 500 V (E-bus/signal voltage)
Power contacts: yes
Supply current for devices: 500 mA per device
Current consumption E-bus: typ. 120 mA
Special features: each channel parameterisable in TwinCAT
Weight: approx. 60 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Approvals/markings: CE, UL, ATEX
Ex-Marking: II 3 G Ex nA IIC T4 Gc
