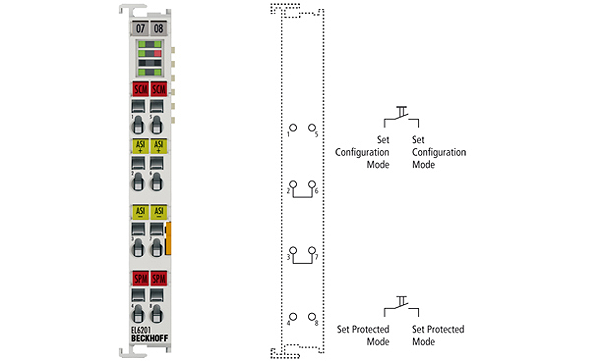

Beckhoff EL6201
EL6201 | AS-Interface master terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6201 AS-Interface master terminal enables the direct connection of AS-Interface slaves. The AS-Interface compliant interface supports digital and analog slaves, versions 3.0 (master profile M3; M4). The connected devices are supplied via the EL9520 AS-Interface potential feed terminal with integrated filter.
Technical parameters
| Technology: | AS-Interface master terminal (M3, M4) |
| AS-Interface channels: | 1 |
| Number of slaves: | up to 31 for V 2.0, up to 62 for V 2.11, V 3.0 |
| Specification version: | AS-Interface V 2.0, V 2.11, V 3.0 (Rev. 4) |
| Slave types: | standard: digital and analog, extended: type 1 (CTT1): S-7.3, S-7.4, type 2 (CTT2): S-7.5.5, S-7.A.5, S-B.A.5, type 3 (CTT3): S-7.A.7, S-7.A.A, type 4 (CTT4): S-7.A.8, S-7.A.9, type 5 (CTT5): S-6.0, safety at work: S-0.B, S-7.B |
| Diagnostics: | power failure, slave failure, parameterisation fault |
| AS-Interface address assignment: | via configuration or automatic |
| Cycle time: | max. 5 ms (at 31 or 62 slaves) |
| Connection: | 2 lines via spring force technology |
| Data transfer rates: | 167 kBit/s |
| Distributed clocks: | – |
| Electrical isolation: | 500 V (AS-Interface/E-bus) |
| Power contacts: | no |
| Current consumption: | 120 mA (E-Bus), typ. 40 mA/max. 60 mA (AS-Interface) |
| Current consumption power contacts: | – |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| AS-Interface certificate: | yes, ZU-No. 97701 |
