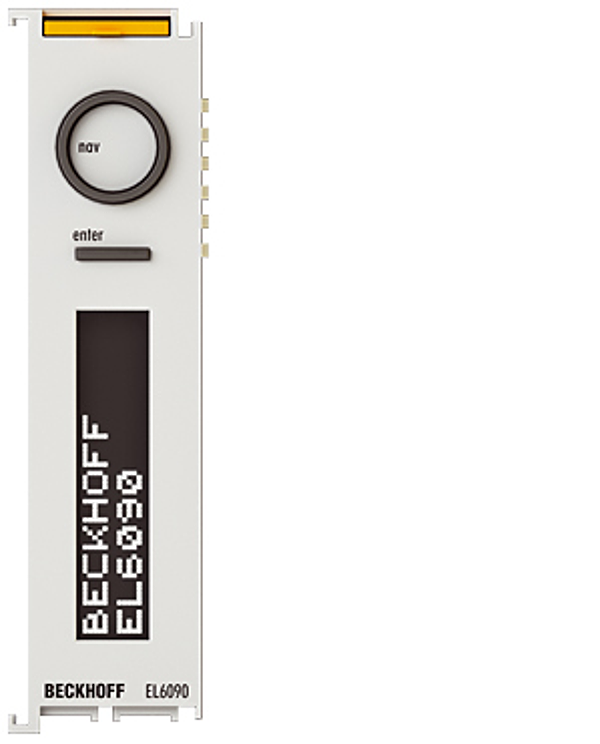

Beckhoff EL6090
EL6090 | Display terminal with navigation switch and operating hours counter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The display terminal has an illuminated, low-reflection LC display with two lines of 16 characters. It can be used, for example, for displaying status messages or diagnostic information. A non-resettable operating hours counter is integrated and can be displayed and also read out via the controller.
Technical parameters
| Technology: | EtherCAT display terminal |
| Switch inputs: | navigation switch: up, down, left, right, enter |
| Display: | LC display, 2 x 16 characters (> 16 characters = scrolling text mode), switchable backlight |
| Special characters: | 2 characters (5 x 8 pixel matrix) |
| Operating hours counter: | 32 bit overflow after 136 years (no reset possible), secure data storage > 100 years (@15 minutes writing interval), accuracy: ±50 ppm |
| Time measuring: | 4 x 32 bit second counter (reset possible) |
| Counter: | 4 x 32 bit counter (reset possible) |
| Storage interval: | manual/automatic every 15 minutes |
| Distributed clocks: | – |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 80 mA |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL |
