Beckhoff EL6080

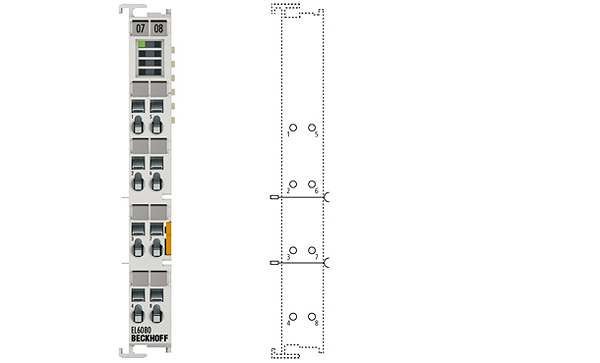

EL6080 | EtherCAT memory terminal 128 kbyte
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6080 EtherCAT memory terminal has 128 kB of non-volatile memory (NOVRAM). The terminal can be used to store and read out parameters and recipes. Part of the memory can also be used for the cyclic storage of machine data such as operating hour meters or production numbers. The terminal is used, for example, for storing module-related data in the machine module in modular machine concepts with a central controller.
Technical parameters
| Technology: | EtherCAT memory terminal |
| Distributed clocks: | – |
| Memory: | 128 kbyte NOVRAM |
| Number of write/read: | arbitrary |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Weight: | approx. 50 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
