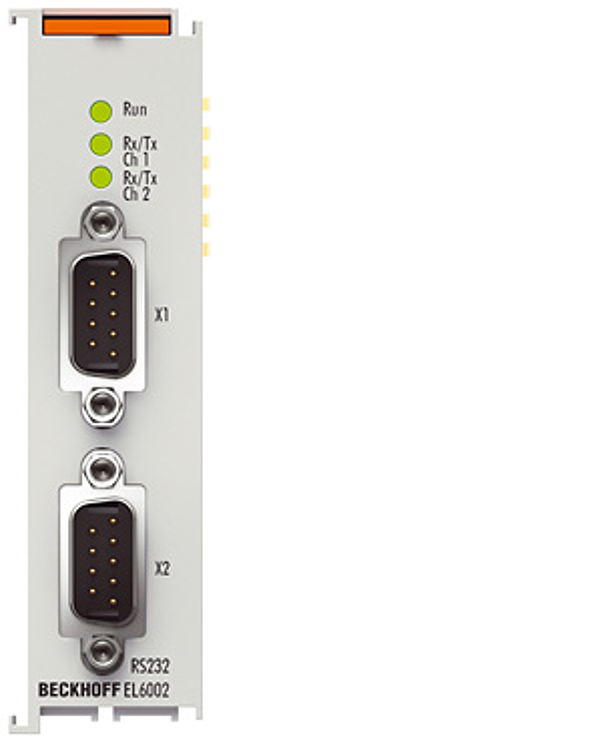

EL6002 | 2-channel serial interface RS232, D-sub connection

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL6002 serial interface enables the connection of devices with two RS232 interfaces. The devices connected to the EL6002 EtherCAT Terminal communicate with the automation device via the Coupler. The active communication channel operates independently of the higher-level EtherCAT system in full duplex mode with 300 baud up to 115.2 kbaud. The RS232 interfaces guarantee high interference immunity through electrically isolated signals.

Technical parameters

Connection technology: D-sub, 9-pin
Data transfer channels: 2
Data transfer rates: 300…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit
Interfaces: 2 x RS232
Line impedance:
Cable length: max. 15 m
Providing external supply:
Power supply: via the E-bus
Distributed clocks:
Electrical isolation: 500 V (E-bus/signal voltage)
Data buffer: 864 bytes receive buffer, 128 bytes transmit buffer
Configuration: no address setting, configuration via the controller
Current consumption power contacts:
Current consumption E-bus: typ. 170 mA
Special features:
Weight: approx. 55 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: II 3 G Ex nA IIC T4 Gc Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc
