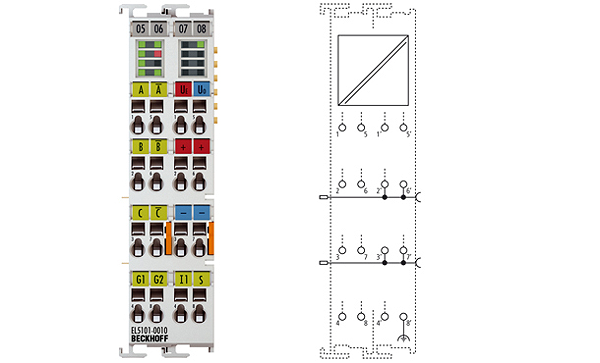

Beckhoff EL5101-0010
EL5101-0010 | Incremental encoder interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL5101-0010 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential inputs (RS422). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface’s status input. Interval measurement with a resolution of up to 100 ns is possible. The gate input allows the counter to be halted. The counter state is taken over with a rising edge at the latch input.
Technical parameters
| Technology: | incremental encoder interface RS422 |
| Encoder type: | Incremental, differential (RS422) |
| Number of channels: | 1 |
| Encoder connection: | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC |
| Encoder operating voltage: | 5 V DC/max. 0.5 A |
| Encoder output current: | 0.5 A |
| Counter: | 1 x 16/32 bit switchable |
| Input frequency: | max. 20 million increments/s (with 4-fold evaluation) |
| Quadrature decoder: | 4-fold evaluation |
| Zero-pulse latch: | 32 or 16 bits |
| Commands: | read, set, enable |
| Oversampling factor: | – |
| Input signal: | difference signal (RS422) |
| Supply voltage: | 24 V DC (-15 %/+20 %) |
| Nominal voltage: | 24 V DC at power contact |
| Conversion time: | – |
| Current consumption power contacts: | typ. 100 mA + load |
| Current consumption E-bus: | typ. 130 mA |
| Distributed clocks: | yes |
| Special features: | wire breakage detection, latch and gate function, period duration and frequency measurement, timestamping of edges, filters, no single-ended operation |
| Weight: | approx. 100 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
