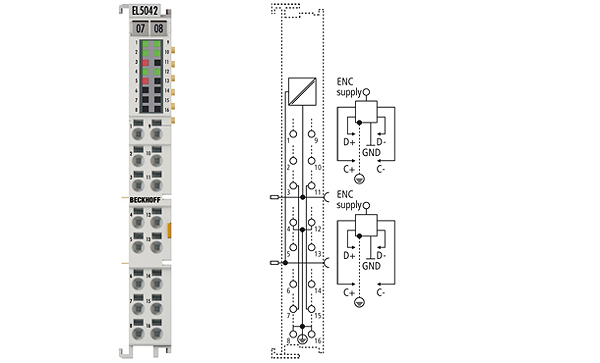

Beckhoff EL5042
EL5042 | 2-channel BiSS-C interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The 2-channel BiSS-C interface for direct connection of BiSS-C encoders is suitable for exact and fast positioning applications – ensuring high synchronicity with other processes through distributed clocks. Via unidirectional BiSS-C communication, the EL5042 sends as a master the clock signal for position detection to the BiSS-C slave (encoder), which returns the position data with up to 64-bit resolution. The EL5042 can be optimally adapted to different encoder types by selecting appropriate operation modes, transmission frequencies and frame widths.
Technical parameters
| Technology: | BiSS-C, unidirectional |
| Encoder type: | BiSS-C, unidirectional |
| Number of channels: | 2 |
| Encoder connection: | D+, D-, C+, C- |
| Encoder operating voltage: | optionally 5 V DC or 9 V DC, 0.5 A |
| Encoder output current: | max. 0.5 A for both channels |
| Supply voltage electronics: | 24 V DC (via power contacts) |
| Commands: | – |
| Resolution: | max. 64 bit position, 2 bit status, 16 bit CRC |
| Data transfer rates: | up to 10 MHz, variable |
| Current consumption power contacts: | typ. 150 mA |
| Current consumption E-bus: | typ. 120 mA |
| Distributed clocks: | yes |
| Special features: | adjustable baud rate, data length, two status bits (error and warning) can be evaluated separately |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+50 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
