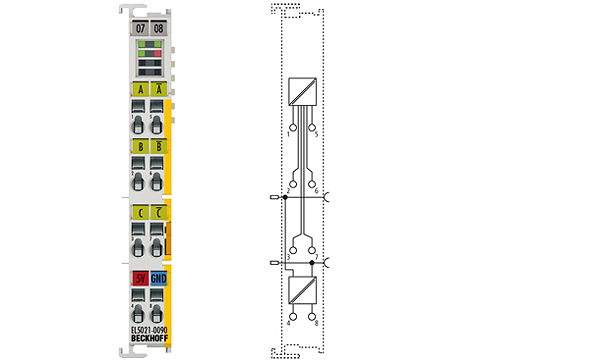

Beckhoff EL5021-0090
EL5021-0090 | TwinSAFE SC: 1-channel SinCos encoder interface, 1 V. PP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL5021-0090 SinCos EtherCAT Terminal allows direct connection of a measuring sensor, e.g. a linear measuring scale with sinusoidal voltage output 1 V. PP. The measuring signal is processed, interpolated and made available as a 32 bit value. At the same time, an offset, gain and phase error compensation is carried out. The input frequency for the measuring signal inputs is 250 kHz with a signal period resolution of max. 13 bit. In addition, the reference mark can also be stored as a 32 bit value.
Technical parameters
| Technology: | SinCos encoder interface for differential 1 VPP signal |
| Number of channels: | 1 |
| Encoder connection: | A, A (inv), B, B (inv), C,C (inv) |
| Input frequency: | 250 kHz (scanning of the input signals with 70 MHz) |
| Commands: | set count, evaluate reference mark latch (C/C [inv]), change of direction, frequency control |
| Power supply: | 24 V via power contacts |
| Current consumption: | 130 mA |
| Nominal voltage: | 24 V at power contact, 5 V encoder supply built in |
| Sensor supply: | 5 V DC from power voltage, 0.5 A max. |
| Resolution: | max. 13 bit, 1024 steps per period |
| Signal input: | 1 VPP |
| Current consumption power contacts: | typ. 50 mA without connected sensor |
| Current consumption E-bus: | typ. 120 mA |
| Distributed clocks: | yes |
| Special features: | TwinSAFE SC, latch, reset, amplitude and frequency error recognition, frequency-dependent period resolution, frequency counter max. 24 bit |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
