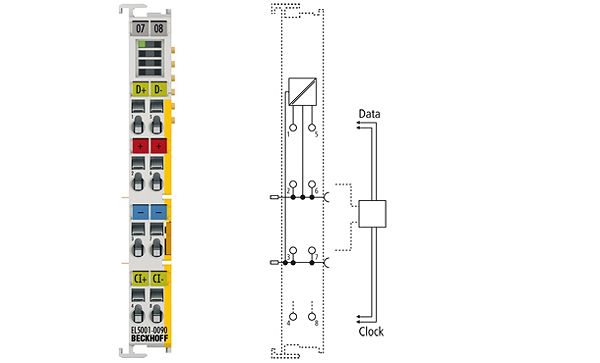

Image copyright: Beckhoff
Beckhoff EL5001-0090
EL5001-0090 | TwinSAFE SC: SSI encoder interfaces
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL5001-0090 SSI interface EtherCAT Terminal allows an SSI encoder to be connected directly. The interface circuit generates a pulse for reading the encoder and makes the incoming data stream available to the controller as a data word in the process image. Various operating modes, transmission frequencies and bit widths can be permanently stored in a control register.
Technical parameters
| Technology: | SSI encoder interface |
| Number of channels: | 1 |
| Encoder connection: | D+, D-, Cl+, Cl- |
| Signal output (pulse): | difference signal (RS422) |
| Signal input (data): | difference signal (RS422) |
| Power supply: | 24 V via power contacts |
| Current consumption: | typ. 20 mA without encoder |
| Encoder supply: | 24 V DC via power contacts |
| Data transfer rates: | variable up to 1 MHz, 250 kHz default |
| Serial input: | 24 bit width (variable) |
| Data direction: | read |
| Current consumption power contacts: | typ. 20 mA |
| Current consumption E-bus: | typ. 120 mA |
| Distributed clocks: | yes |
| Special features: | TwinSAFE SC, adjustable baud rate, coding and data length |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
