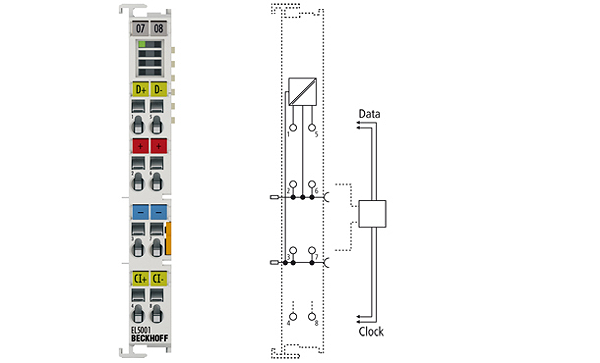

Beckhoff EL5001
EL5001 | SSI encoder interfaces
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL5001 SSI interface EtherCAT Terminal allows an SSI encoder to be connected directly. The interface circuit generates a pulse for reading the encoder and makes the incoming data stream available to the controller as a data word in the process image. Various operating modes, transmission frequencies and bit widths can be permanently stored in a control register.
Technical parameters
| Technology: | SSI encoder interface |
| Number of channels: | 1 |
| Encoder connection: | D+, D-, Cl+, Cl- |
| Signal output (pulse): | difference signal (RS422) |
| Signal input (data): | difference signal (RS422) |
| Power supply: | 24 V via power contacts |
| Current consumption: | typ. 20 mA without encoder |
| Encoder supply: | 24 V DC via power contacts |
| Data transfer rates: | variable up to 1 MHz, 250 kHz default |
| Serial input: | 24 bit width (variable) |
| Data direction: | read |
| Bit width in the process image: | 1 x 32 bit input, 8 bit status |
| Current consumption power contacts: | typ. 20 mA |
| Current consumption E-bus: | typ. 120 mA |
| Distributed clocks: | yes |
| Special features: | adjustable baud rate, coding and data length |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
