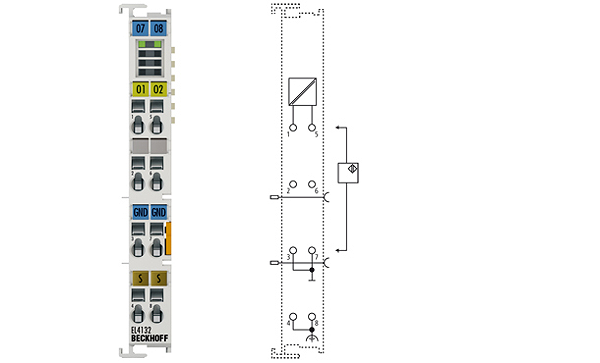

Beckhoff EL4132
EL4132 | 2-channel analog output terminal -10…+10 V, 16 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL4132 analog output terminal generates signals in the range between -10 and +10 V. The voltage is supplied to the process level with a resolution of 16 bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4132 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Connection technology: | 2-wire, single-ended |
| Number of outputs: | 2 |
| Power supply: | via the E-bus |
| Signal voltage: | -10…+10 V |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Load: | > 5 kΩ (short-circuit-proof) |
| Output error: | < 0.1 % (relative to end value) |
| Resolution: | 16 bit (incl. sign) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Conversion time: | ~ 40 µs |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 210 mA |
| Bit width in the process image: | 2 x 16 bit AO output |
| Special features: | Watchdog parameterisable; user synchronisation can be activated. |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
