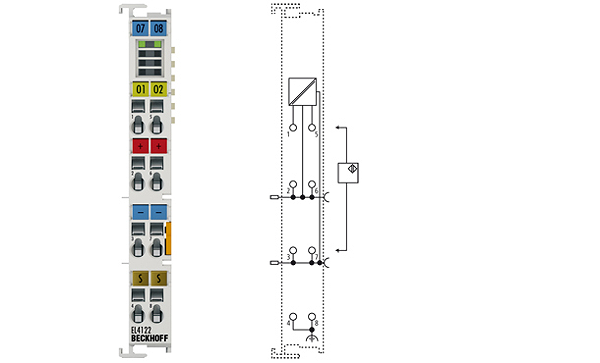

EL4122 | 2-channel analog output terminal 4…20 mA, 16 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL4122 analog output terminal generates signals in the range between 4 and 20 mA. The power is supplied to the process level with a resolution of 16 bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24 V DC supply. The output stages are powered by the 24 V supply. The EL4122 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.

Technical parameters

Connection technology: 3-wire, single-ended
Number of outputs: 2
Power supply: 24 V DC via power contacts
Signal current: 4…20 mA
Distributed clocks: yes
Distributed clock precision: << 1 µs
Load: < 500 Ω (short-circuit proof)
Output error: < 0.1 % (relative to end value)
Resolution: 16 bit (incl. sign)
Electrical isolation: 500 V (E-bus/signal voltage)
Conversion time: ~ 40 µs
Current consumption power contacts: typ. 15 mA + load
Current consumption E-bus: typ. 160 mA
Bit width in the process image: 2 x 16 bit AO output
Special features: Watchdog parameterisable; user synchronisation can be activated.
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals: CE, UL, Ex
