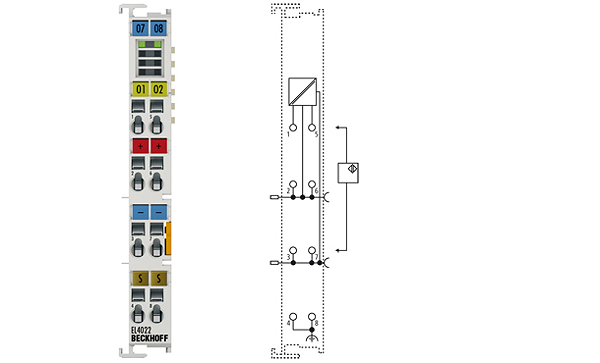

Beckhoff EL4022
EL4022 | 2-channel analog output terminal 4…20 mA, 12 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL4022 analog output terminal generates signals in the range between 4 and 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24 V DC supply. The output stages are powered by the 24 V supply. The EL4022 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Connection technology: | 3-wire, single-ended |
| Number of outputs: | 2 |
| Power supply: | 24 V DC via power contacts |
| Signal current: | 4…20 mA |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Load: | < 500 Ω (short-circuit-proof) |
| Output error: | < 0.1 % (relative to end value) |
| Resolution: | 12 bit |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Conversion time: | ~ 150 µs |
| Current consumption power contacts: | typ. 25 mA |
| Current consumption E-bus: | typ. 140 mA |
| Bit width in the process image: | 2 x 16 bit AO output |
| Special features: | Optional watchdog: user-specific output value with ramp; user synchronisation can be activated. |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex, IECEx |
