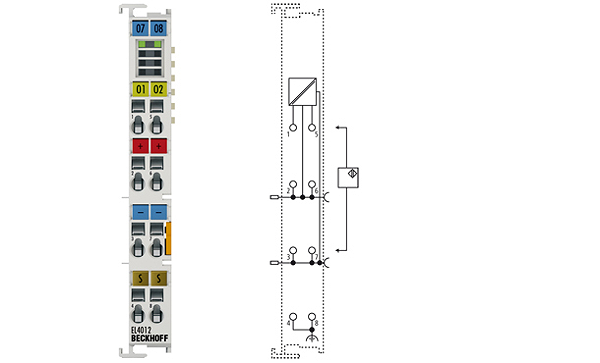

EL4012 | 2-channel analog output terminal 0…20 mA, 12 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL4012 analog output terminal generates analog output signals in the range between 0 and 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. Ground potential for the output channels of an EtherCAT Terminal is common with the 0 V DC supply. The output stages are powered by the 24 V supply. The EL4012 combines two channels in one housing. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.

Technical parameters

Connection technology: 3-wire, single-ended
Number of outputs: 2
Power supply: 24 V DC via power contacts
Signal current: 0…20 mA
Distributed clocks: yes
Distributed clock precision: << 1 µs
Load: < 500 Ω (short-circuit-proof)
Output error: < 0.1 % (relative to end value)
Resolution: 12 bit
Electrical isolation: 500 V (E-bus/signal voltage)
Conversion time: ~ 150 µs
Current consumption power contacts: typ. 25 mA
Current consumption E-bus: typ. 140 mA
Bit width in the process image: 2 x 16 bit AO output
Special features: Optional watchdog: user-specific output value with ramp; user synchronisation can be activated.
Weight: approx. 60 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals: CE, UL, Ex
