Beckhoff EL3632-0020

EL3632-0020 | 2-channel analog input terminal for Condition Monitoring (IEPE), with calibration certificate

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

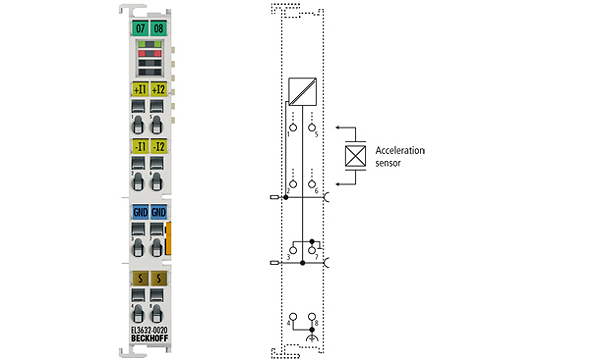

Accelerometers with IEPE interface can be directly connected to the EL3632-0020 EtherCAT Terminal. The measuring signals are analysed on the PC via the TwinCAT library. This enables all benefits of the PC platform, such as performance and flexibility, to be fully utilised. Alternatively, custom software can be used for the analysis. The terminal can be adapted to individual requirements through configurable filters and supply currents.

Technical parameters

Number of inputs: 2
Technology: Condition Monitoring (IEPE), oversampling recording
Signal voltage: IEPE constant current supply and recording of modulated AC voltage
Distributed clocks: yes
Input filter limit frequency: analog parameterisable 5th order low-pass filter up to 25 kHz, typically 0.05 Hz high-pass filter
Conversion time: 20 μs (max. 50 ksamples/s)
Measuring range: default ±5 V up to 25 kHz, ±250 mV up to 10 Hz
Power supply UV: 24 V DC via power contacts
Sensor voltage: max. power contact voltage less 1 V
Sensor state monitoring: yes, through monitoring of the bias voltage
Supply current IEXCITE: typ. 2/4/8 mA (separately configurable for both channels)
Input: single-ended
Resolution: 16 bit (incl. sign)
Measuring error: < ±0.5 % (DC; relative to full scale value)
Calibration certificate: yes
Current consumption power contacts: 24 V, typ. 20 mA + load
Current consumption E-bus: typ. 220 mA
Special features: automatic anti-aliasing function, wire breakage detection, with calibration certificate
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/see documentation
Approvals/markings: CE, UL, ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
