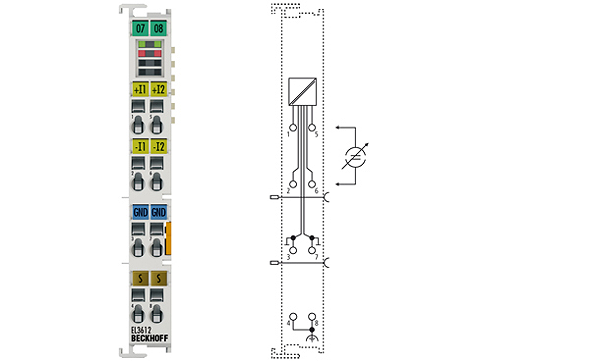

Beckhoff EL3612
EL3612 | 2-channel analog input terminal 0…20 mA, differential input, 24 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3612 analog input terminal handles signals in the range between 0 and 20 mA. The voltage is digitised to a resolution of 24 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Number of inputs: | 2 (differential) |
| Power supply: | via the E-bus |
| Technology: | differential input |
| Signal current: | 0…20 mA |
| Oversampling factor: | – |
| Distributed clocks: | – |
| Distributed clock precision: | – |
| Internal resistance: | typ. 85 Ω + diode voltage |
| Input filter limit frequency: | 3 kHz |
| Common-mode voltage UCM: | max. 10 V |
| Conversion time: | 1…400 ms configurable |
| Input signal bandwidth: | see input filter |
| Resolution: | 24 bit (incl. sign) |
| Measuring error: | < ±0.01 % at 25 °C (relative to full scale value, 50 Hz filter) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 190 mA |
| Crosstalk attenuation: | > 60 dB |
| Special features: | various filter times, limit evaluation, high precision |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
| Ex-Kennzeichnung: | II 3 G Ex nA IIC T4 Gc |
