EL3602-0002 | 2-channel analog input terminal, ±200 mV, differential input, 24 bit

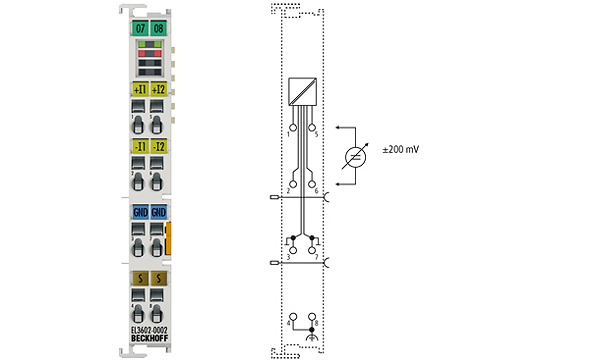

The 2-channel analog input terminal EL3602-0002 is a variant of the EL3602 for measurements in the range ±200 mV. The voltage is digitised to a resolution of 24 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal are differential inputs and possess a common, internal ground potential. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Number of inputs: | 2 (differential) |
Power supply: | via the E-bus |
Technology: | differential input |
Signal voltage: | -200…+200 mV |
Oversampling factor: | – |
Distributed clocks: | – |
Distributed clock precision: | – |
Internal resistance: | > 200 kΩ |
Input filter limit frequency: | 10 kHz |
Common-mode voltage UCM: | 35 V max. |
Resolution: | 24 bit (incl. sign) |
Conversion time: | 20 ms default setting, 1…400 ms configurable |
Input signal bandwidth: | – |
Measuring error: | < ±0.05 % at 25 °C, 50 Hz filter (relative to full scale value) |
Electrical isolation: | 500 V (E-bus/signal voltage) |
Current consumption power contacts: | – |
Current consumption E-bus: | typ. 190 mA |
Crosstalk attenuation: | > 60 dB |
Special features: | various filter times, limit value monitoring, high precision |
Weight: | approx. 60 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL, Ex |
Ex-Kennzeichnung: | II 3 G Ex nA IIC T4 Gc |
