Beckhoff EL3423

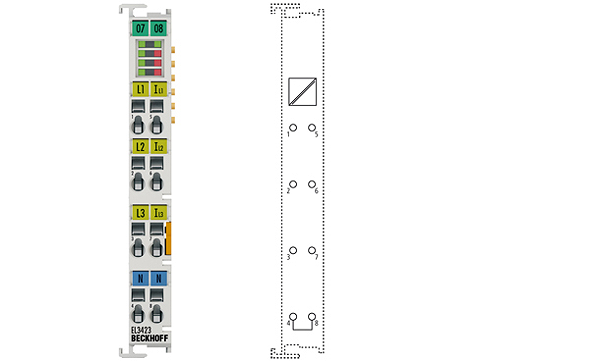

EL3423 | 3-phase power measurement terminal, Economy
Description
The EL3423 EtherCAT Terminal enables the measurement of relevant data for an efficient energy management system. The voltage is measured internally via direct connection of L1, L2, L3 and N. The current of the three phases L1, L2 and L3 is fed via simple current transformers. The measured energy values are available separately as generated and accepted values. In the EL3423 Terminal, the effective power and the energy consumption for each phase are calculated. In addition, an internally calculated network quality factor provides information about the quality of the monitored voltage supply. The EL3423 offers basic functionality for mains analysis and energy management.
Technical parameters
| Number of inputs: | 3 x current, 3 x voltage |
| Technology: | 3-phase energy measurement |
| Oversampling factor: | – |
| Distributed clocks: | – |
| Update interval: | > 10 s |
| Update time: | net-synchronous |
| Measured values: | energy, power, power quality factor |
| Measuring voltage: | max. 480 V AC 3~ (ULX-N: max. 277 V AC/240 V DC) |
| Measuring current: | max. 1 A (AC/DC), via measuring transformers x A/1 A |
| Measuring error: | 0.5 % relative to full scale value (U/I), 1 % calculated value |
| Monitoring function: | phase order, phase failure, phase asymmetry, undervoltage/overvoltage (adjustable) |
| Electrical isolation: | 2500 V |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 120 mA |
| Special features: | mains monitoring, single-phase operation possible |
| Weight: | approx. 75 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings: | CE |
