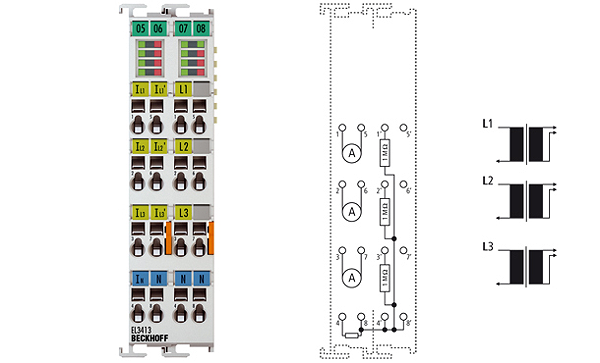

EL3413 | 3-phase power measurement terminal up to 690 V AC
Description
The EL3413 EtherCAT power measurement terminal is a further development of the EL3403. With up to 690 V AC the voltage inputs are optimised for direct monitoring of high-performance generators, as used in the wind power industry, for example. No upstream voltage transformer is required. The current inputs are galvanically isolated so that the terminal can be used in all common grounded current transformer configurations such as 2- or 3-transformer configurations with star or delta connection. The EL3413 can deal with simple network analysis up to the 21, st, harmonic analysis. Like all measured terminal data, the harmonic content can be read via the process data.
Technical parameters
| Number of inputs: | 4 x current, 3 x voltage |
| Technology: | 3-phase power measurement for alternating voltages |
| Oversampling factor: | – |
| Distributed clocks: | – |
| Conversion time: | mains-synchronous |
| Measured values: | current (I1, I2, I3, In), voltage, effective power, reactive power, apparent power, energy, cos φ, frequency, harmonic |
| Measuring voltage: | max. 690 V AC 3~ (ULX-N: max. 400 V AC) |
| Measuring current: | adjustable, 100 mA, 1 A (default), 5 A; potential-free |
| Resolution: | 1 μA, 0.1 mV, 10 mW |
| Measuring error: | 0.5 % relative to full scale value (U/I), 1 % calculated value |
| Electrical isolation: | 4500 V |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 160 mA |
| Special features: | galvanically isolated current inputs, harmonic analysis, single-phase operation also possible, recommended for new projects: EL3453 |
| Weight: | approx. 100 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE |
