Beckhoff EL3356-0010

EL3356-0010 | 1-channel precise load cell analysis (resistor bridge), 24 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

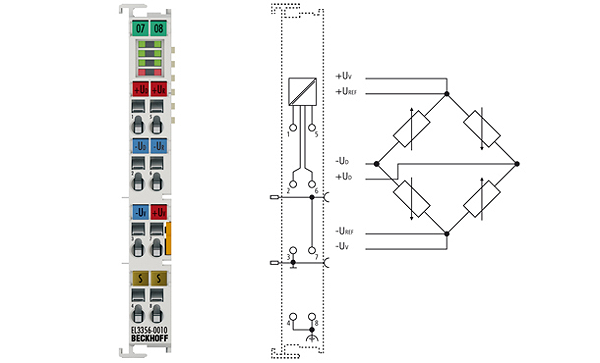

The analog EL3356-0010 input terminal enables direct connection of a resistor bridge or load cell in a 4- or 6-wire connection technology. The ratio between the bridge voltage U. D, and the supply voltage U. REF, is determined simultaneously in the input circuit and the final load value is calculated as a process value on the basis of the settings in the terminal. With automatic self-calibration (can be deactivated), dynamic filters and distributed clock support, the terminal with measuring cycles of 100 µs can be used for fast and precise monitoring of torque or vibration sensors.

Technical parameters

Number of inputs: 2, for 1 resistor bridge in full bridge technology
Technology: resistor bridge, strain gauge
Distributed clocks: yes
Measuring range UD: max. -25…+25 mV rated voltage
Measuring range UREF: max. -12…+12 V rated voltage
Internal resistance: > 200 kΩ (UREF), > 1 MΩ (UD)
Input filter limit frequency: 10 kHz low pass (-3 dB)
Resolution: 24 bit, 32 bit presentation
Conversion time: 0.1…250 ms, configurable, max. 10,000 samples/s
Conversion rate: 10,000…4 samples/s (0.1…250 ms conversion time)
Power supply UV: up to 12 V DC from power contacts, dependent on sensor
Measuring error: < ±0.01 % for the calculated load value in relation to the final load value with a 12 V feed and 24 mV bridge voltage (hence nominal strain gauge characteristic value of 2 mV/V), self-calibration active, 50 Hz filter active
Current consumption power contacts: depends on strain gauge supply, min. 1 mA
Current consumption E-bus: typ. 280 mA
Supported nominal sensitivity: all, parameter resolution: 0.01 µV/V; recommended: 0.5…4 mV/V
Special features: self-calibration, quadruple averager, dynamic filters, fast data sampling
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.: IP 20/variable
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: II 3 G Ex nA IIC T4 Gc Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc
