Beckhoff EL3351

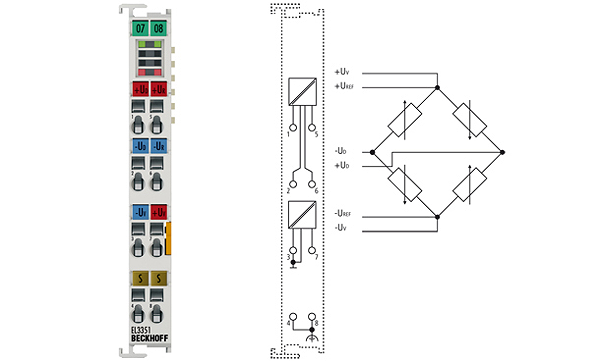

EL3351 | 1-channel resistor bridge terminal (strain gauge)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3351 analog input terminal permits direct connection of a resistor bridge. The bridge voltage, U. D, and the supply voltage, U. REF, to the bridge are digitised with a 16 bit resolution, and are transmitted along an electrically isolated channel to the supervising automation system. The input channels are available in the form of two 16 bit values for further processing. The resulting measurement can be calculated from the formula: measurement = U. U. Precise acquisition of the supply voltage along with the bridge voltage compensates for long-term and temperature drift.
Technical parameters
| Number of inputs: | 2, for 1 resistor bridge in full bridge technology |
| Power supply: | via the E-bus |
| Technology: | resistor bridge, strain gauge |
| Distributed clocks: | – |
| Measuring range UD: | max. -20…+20 mV |
| Measuring range UREF: | max. -12…+12 V |
| Internal resistance: | > 200 kΩ (UREF), > 1 MΩ (UD) |
| Input filter limit frequency: | 50 Hz default setting, parameterisable |
| Conversion time: | 2.5…800 ms, configurable, max. 400 samples/s |
| Power supply UV: | 5 V, max. 20 mA |
| Resolution: | 16 bit, 32 bit presentation |
| Filter: | 50 Hz, configurable |
| Measuring error: | < ±0.1 % (relative to full scale value, 50 Hz filter) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 170 mA |
| Supported nominal sensitivity: | calculated in PLC, freely selectable |
| Special features: | integrated 5 V DC bridge supply |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/Markings: | CE, UL, ATEX |
