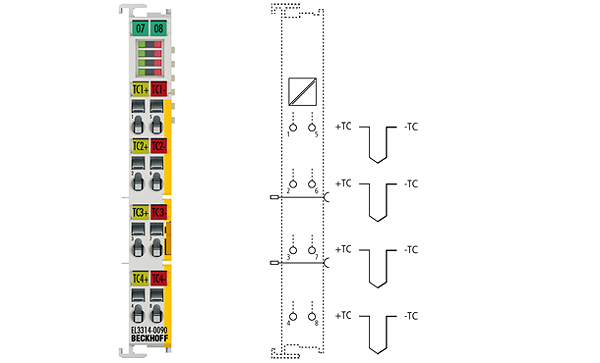

Beckhoff EL3314-0090
EL3314-0090 | TwinSAFE SC: 4-channel thermocouple input terminal with open-circuit recognition
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3314-0090 analog input terminal allows four thermocouples to be connected directly. The EtherCAT Terminal circuit can operate thermocouple sensors using the 2-wire technique. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. Compensation for the cold junction is made through an internal temperature measurement at the terminal. The EL3314-0090 can also be used for mV measurement.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Technology: | temperature measurement |
| Thermocouple sensor types: | types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz; depending on sensor length, conversion time, sensor type |
| Connection method: | 2-wire |
| Wiring fail indication: | yes |
| Conversion time: | approx. 2.5 s up to 20 ms, depending on configuration and filter setting, default: approx. 250 ms |
| Temperature range: | in the range defined in each case for the sensor (default setting: type K; -200…+1370 °C); voltage measurement: ±30 mV…±75 mV |
| Resolution: | 0.1 °C per digit |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 200 mA |
| Bit width in the process image: | 4 x 32 bit TC input, 4 x 16 bit TC output |
| Configuration: | no address setting, configuration via the controller |
| Special features: | TwinSAFE SC, open-circuit recognition |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
