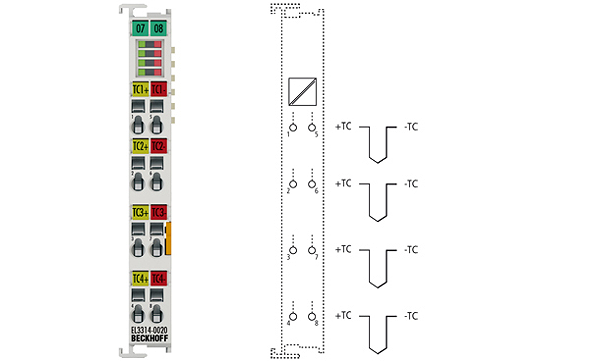

Beckhoff EL3314-0020
EL3314-0020 | 4-channel thermocouple input terminal, high-precision, with open-circuit recognition, with calibration certificate
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3314-0020 analog input terminal allows four thermocouples to be connected directly. The EtherCAT Terminal circuit can operate thermocouple sensors using the 2-wire technique. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The error LEDs indicate a broken wire. Compensation for the cold junction is made through an internal high-precision temperature measurement at the terminal. The EL3314-0020 can also be used for mV measurement.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Thermocouple sensor types: | types K, J, L, E, T, N, U, B, R, S, C (default setting type K), mV measurement |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz; depending on sensor length, conversion time, sensor type |
| Connection method: | 2-wire |
| Wiring fail indication: | yes |
| Conversion time: | approx. 2.5 s up to 20 ms, depending on configuration and filter setting, default: approx. 250 ms |
| Voltage measurement: | ±78 mV (error: ±25 µV) |
| Temperature range: | in the range defined in each case for the sensor (default setting: type K; -270…+1370 °C); voltage measurement: ±78 mV in 10 nV resolution |
| Resolution: | 24 bit, presentation adjustable: 0.1/0.01/0.001 °C per digit or 10 nV per digit |
| Measuring error: | @ 50 Hz filter, @ 25 °C ambient temperature: type B: ±5.0 °C; type E: ±1.8 °C; type J: ±1.8 °C; type K: ±1.8 °C; type L: ±1.8 °C; type N: ±2.5 °C; type R: ±4.0 °C; type S: ±4.0 °C; type T: ±1.8 °C; type U: ±1.8 °C; type C: ±3.5 °C |
| Calibration certificate: | yes |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 200 mA |
| Special features: | open-circuit recognition, with calibration certificate |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
