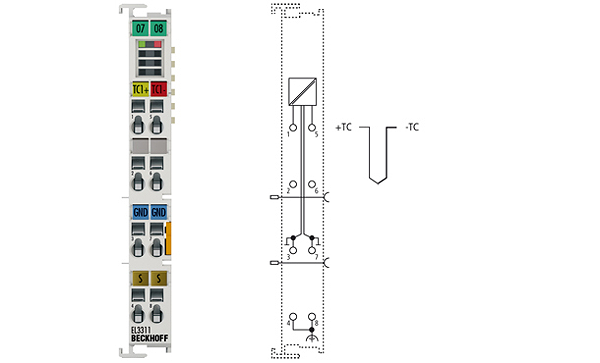

Beckhoff EL3311
EL3311 | 1-channel thermocouple input terminal with open-circuit recognition
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3311 analog input terminal allows thermocouples to be connected directly. The EtherCAT Terminal's circuit can operate thermocouple sensors using the 2-wire technique. Linearisation over the full temperature range is realised with the aid of a microprocessor. The temperature range can be selected freely. The error LEDs indicate a broken wire. Compensation for the cold junction is made through an internal temperature measurement at the terminal. The EL3311 can also be used for mV measurement.
Technical parameters
| Number of inputs: | 1 |
| Power supply: | via the E-bus |
| Thermocouple sensor types: | types K, J, L, E, T, N, U, B, R, S, C (default setting type K), mV measurement |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz; dependent on sensor length, conversion time, sensor type |
| Connection method: | 2-wire |
| Wiring fail indication: | yes |
| Conversion time: | approx. 750 ms up to 20 ms, depending on configuration and filter setting, default: approx. 75 ms |
| Temperature range: | in the range defined in each case for the sensor (default setting: type K; -200…+1370 °C); voltage measurement: ±30 mV…±75 mV |
| Resolution: | 0.1 °C per digit |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | 200 mA |
| Bit width in the process image: | 1 x 32 bit TC input, 1 x 16 bit TC output |
| Special features: | open-circuit recognition |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
