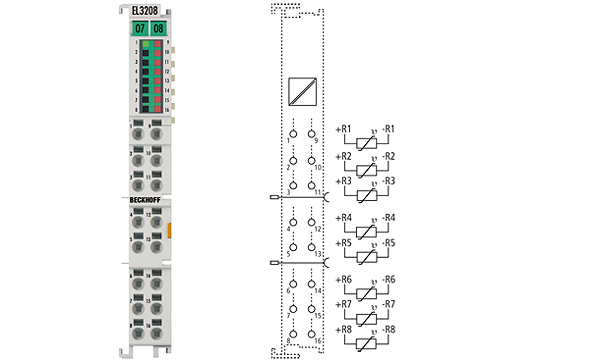

Image copyright: Beckhoff
Beckhoff EL3208
EL3208 | 8-channel input terminal PT100 (RTD)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3208 analog input terminal allows eight resistance sensors to be connected directly. The EtherCAT Terminal circuit can operate sensors using the 2-wire technique in a compact 12 mm housing. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The EtherCAT Terminal’s standard settings are: resolution 0.1 °C. Sensor malfunctions such as broken wires are indicated by error LEDs.
Technical parameters
| Number of inputs: | 8 |
| Power supply: | via the E-bus |
| Technology: | 2-wire |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz |
| Sensor types: | PT100, PT200, PT500, PT1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Connection method: | 2-wire |
| Conversion time: | approx. 170 ms default setting, 3…1600 ms configurable |
| Measuring current: | < 0.5 mA (load-dependent) |
| Measuring range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
| Temperature range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
| Resolution: | 0.1 °C per digit |
| Measuring error: | < ±0.5 °C for PT sensors |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 140 mA |
| Special features: | integrated digital filter, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
