Beckhoff EL3204-0200
EL3204-0200 | 4-channel universal input terminal for RTD up to 240 kΩ, NTC 20 k, 16 bit
Description
The analog EL3204-0200 input terminal enables direct connection of four resistance sensors up to 240 kΩ, so that the usable measuring range is significantly larger compared with the EL3204. The EtherCAT Terminal circuit can operate sensors using the 2-wire technique. The resistance values are converted (linearisation) in the terminal either based on preset characteristic curves, conversion formulas with specific material parameters (e.g. according to IEC 60751, Steinhart-Hart equation, B-parameter equation), or a freely programmable conversion table. Sensor malfunctions such as broken wires are indicated by error LEDs.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Sensor types: | Ni/PT, any RTD in the range of 100 Ω…240 kΩ, calculation possible on the basis of a table or material constant, resistance measurement |

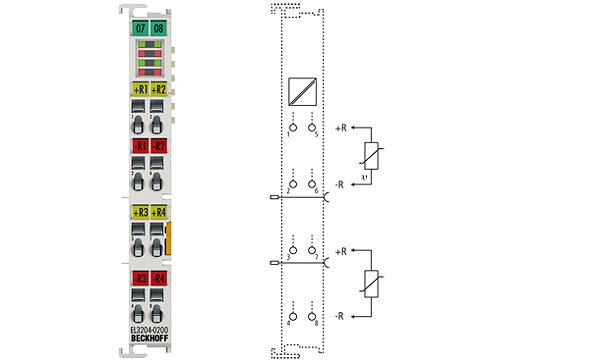

| Connection method: | 2-wire |
| Conversion time: | approx. 24 ms default setting, 4…500 ms configurable |
| Measuring current: | < 0.03 mA typ. |
| Resolution: | 0.1 °C per digit |
| Measuring error: | < ±0.3 % relative to full scale value (6 kΩ, 65 kΩ, 240 kΩ) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 150 mA |
| Bit width in the process image: | 4 x 32 bit RTD input |
| Special features: | temperature calculation on the basis of Steinhart-Hart, B parameters, IEC 60751, free table, predefined sensors |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
