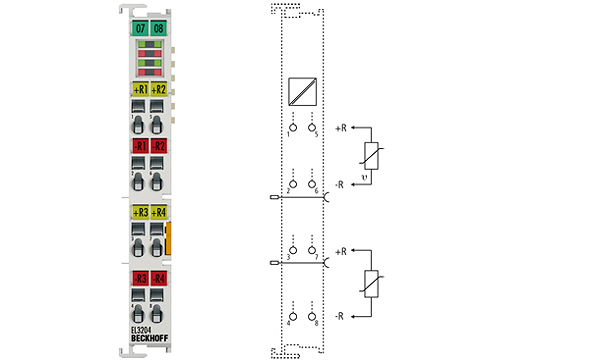

Beckhoff EL3204
EL3204 | 4-channel input terminal PT100 (RTD)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3204 analog input terminal allows resistance sensors to be connected directly. The EtherCAT Terminal circuit can operate sensors using the 2-wire technique. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The EtherCAT Terminal’s standard settings are: resolution 0.1 °C in the temperature range of PT100 sensors. Sensor malfunctions such as broken wires are indicated by error LEDs.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Input filter limit frequency: | typ. 1 kHz |
| Sensor types: | PT100, PT200, PT500, PT1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Connection method: | 2-wire |
| Resolution: | 0.1 °C per digit |
| Conversion time: | approx. 85 ms default setting, 2…800 ms configurable |
| Temperature range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
| Measuring current: | < 0.5 mA (load-dependent) |
| Measuring error: | < ±0.5 °C for PT sensors |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 190 mA |
| Bit width in the process image: | 4 x 32 bit RTD input |
| Special features: | integrated digital filter, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
