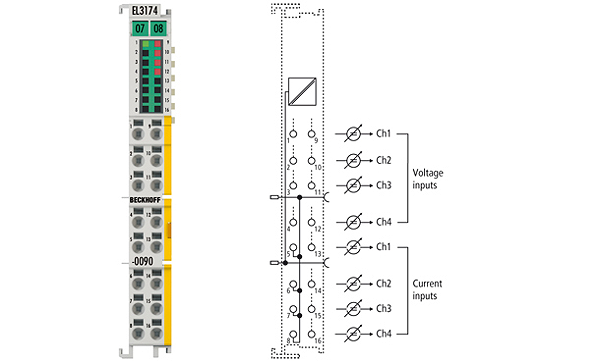

EL3174-0090 | TwinSAFE SC: 4-channel analog input, -10/0…+10 V, -20/0/+4…+20 mA, 16 bit
Description
The EL3174 analog input terminal has four individually parameterisable inputs. Signals in the range from -10/0 to +10 V or -20/0/+4 to +20 mA can be processed via each channel. Physically, the voltage and current signals should be connected to different terminal points. Each channel should then be set by the controller/TwinCAT to U or I mode via CoE. The voltage inputs operate differentially; the current inputs are single-ended. All inputs are digitised with a resolution of 16 bits and transmitted, electrically isolated, to the higher-level automation device. With a technical measuring range of ±107 % of the nominal range, the terminal also supports commissioning with sensor values in the limit range and diagnostics according to NAMUR NE43.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Technology: | U differential, I single-ended |
| Oversampling factor: | – |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Internal resistance: | > 200 kΩ | typ. 85 Ω |
| Input filter limit frequency: | 5 kHz |
| Common-mode voltage UCM: | max. 35 V (voltage measurement) |
| Dielectric strength: | max. 30 V (current measurement) |
| Conversion time: | minimum 150 µs |
| Measuring range, nominal: | -10/0…+10 V | -20/0/+4…+20 mA |
| Measuring range, technical: | -10.73…+10.73 V | -21.47…+21.47 mA |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 200 mA |
| Configuration: | no address or configuration setting |
| Special features: | TwinSAFE SC, U/I parameterisable, ExtendedRange,standard and compact process image, activatable FIR/IIR filters |
| Weight: | approx. 65 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
