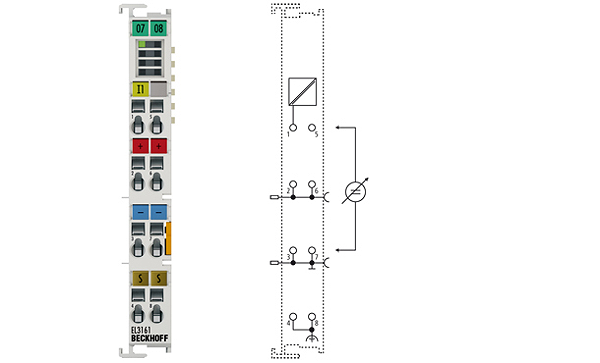

Beckhoff EL3161
EL3161 | 1-channel analog input terminal 0…10 V, single-ended, 16 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3161 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitised to a resolution of 16 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have the reference ground as common ground potential. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Number of inputs: | 1 (single-ended) |
| Power supply: | via the E-bus |
| Technology: | single-ended |
| Signal voltage: | 0…10 V |
| Distributed clocks: | yes |
| Internal resistance: | > 200 kΩ |
| Input filter limit frequency: | 5 kHz |
| Dielectric strength: | max. 30 V |
| Conversion time: | ~ 35 µs |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | 1 x 16 bit input, 1 x 8 bit status |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
