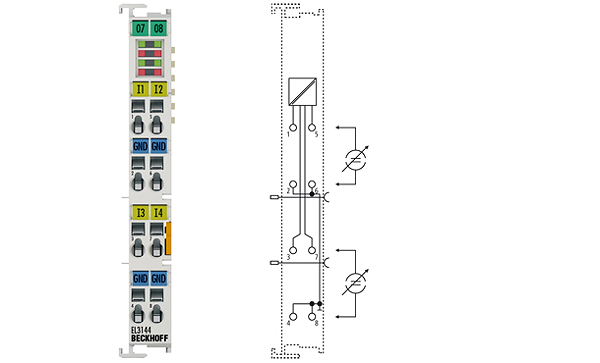

Beckhoff EL3144
EL3144 | 4-channel analog input terminal 0…20 mA, single-ended, 16 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3144 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 16 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3144 EtherCAT Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical parameters
| Number of inputs: | 4 (single-ended) |
| Power supply: | via the E-bus |
| Technology: | single-ended |
| Signal current: | 0…20 mA |
| Oversampling factor: | – |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Internal resistance: | 85 Ω typ. + diode voltage |
| Input filter limit frequency: | 5 kHz |
| Dielectric strength: | max. 30 V |
| Conversion time: | ~ 40 µs |
| Input signal bandwidth: | see input filter |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | inputs: 16 byte |
| Configuration: | no address or configuration setting required |
| Special features: | standard and compact process image, switchable measuring data representation in the EL3142-0010, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
