EL3124 | 4-channel analog input terminal 4…20 mA, differential input, 16 bit
Description

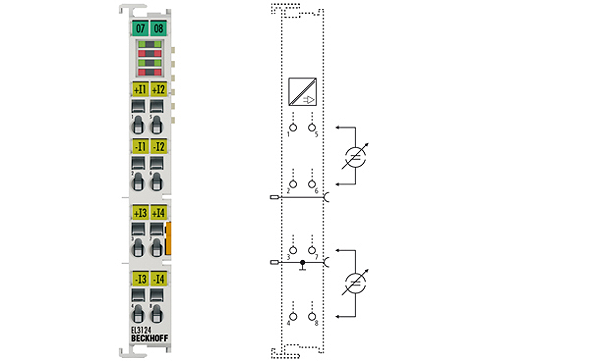

The EL3124 analog input terminal handles signals in the range from 4 to 20 mA. The current is digitised to a resolution of 16 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3124 combines four channels in one housing. An open lead or overload condition are detected and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
Technical parameters
| Number of inputs: | 4 (differential) |
| Power supply: | via the E-bus |
| Technology: | differential input |
| Signal current: | 4…20 mA |
| Distributed clocks: | yes |
| Internal resistance: | 85 Ω typ. + diode voltage |
| Input filter limit frequency: | 5 kHz |
| Common-mode voltage UCM: | 10 V max. |
| Conversion time: | ~ 100 µs |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance: | 35 V DC |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | inputs: 16 byte |
| Configuration: | no address or configuration setting |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
