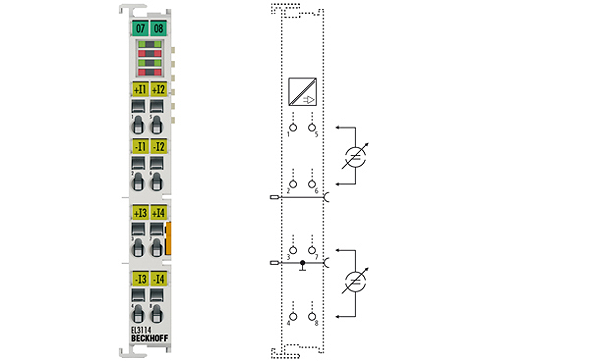

Article image EL3114

Beckhoff EL3114

EL3114 | 4-channel analog input terminals 0…20 mA, differential input, 16 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL3114 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. Overload condition is detected, and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.

Technical parameters

Number of inputs: 4 (differential)
Power supply: via the E-bus
Technology: differential input
Signal current: 0…20 mA
Oversampling factor:
Distributed clocks: yes
Distributed clock precision: << 1 µs
Internal resistance: 85 Ω typ. + diode voltage
Input filter limit frequency: 5 kHz
Common-mode voltage UCM: 10 V max.
Conversion time: ~ 100 µs
Input signal bandwidth: see input filter
Resolution: 16 bit (incl. sign)
Measuring error: < ±0.3 % (relative to full scale value)
Surge voltage resistance: 35 V DC
Electrical isolation: 500 V (E-bus/signal voltage)
Current consumption power contacts:
Current consumption E-bus: typ. 130 mA
Bit width in the process image: inputs: 16 byte
Configuration: no address or configuration setting
Special features: standard and compact process image, activatable FIR/IIR filters, limit value monitoring
Weight: approx. 55 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals: CE, UL, Ex
