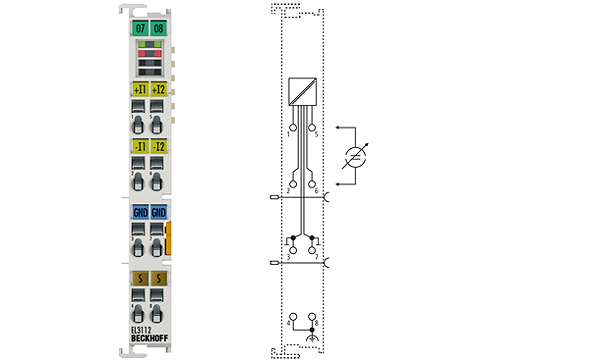

Beckhoff EL3112
EL3112 | 2-channel analog input terminals 0…20 mA, differential input, 16 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3112 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3112 combines two channels in one housing. Overload condition is detected, and the terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition.
Technical parameters
| Number of inputs: | 2 (differential) |
| Power supply: | via the E-bus |
| Technology: | differential input |
| Signal current: | 0…20 mA |
| Oversampling factor: | – |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Internal resistance: | 85 Ω typ. + diode voltage |
| Input filter limit frequency: | 5 kHz |
| Common-mode voltage UCM: | 10 V max. |
| Conversion time: | ~ 50 µs (fast mode ~ 35 µs) |
| Input signal bandwidth: | see input filter |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance: | 35 V DC |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 170 mA |
| Bit width in the process image: | inputs: 8 byte |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
