Beckhoff EL3102

EL3102 | 2-channel analog input terminal -10…+10 V, differential input, 16 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

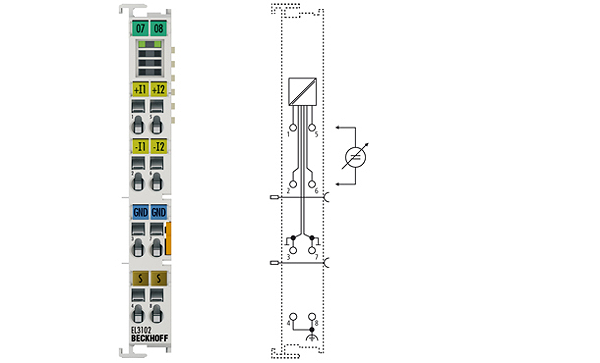

Description

The EL3102 analog input terminal handles signals in the range between -10 and +10 V. The voltage is digitised to a resolution of 16 bits, and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.

Technical parameters

Number of inputs: 2 (differential)
Power supply: via the E-bus
Technology: differential input
Signal voltage: -10…+10 V
Oversampling factor:
Distributed clocks: yes
Distributed clock precision: << 1 µs
Internal resistance: > 200 kΩ
Input filter limit frequency: 5 kHz
Common-mode voltage UCM: 35 V max. (relative to the internal GND)
Conversion time: ~ 60 µs (fast mode ~ 40 µs)
Input signal bandwidth:
Resolution: 16 bit (incl. sign)
Measuring error: < ±0.3 % (relative to full scale value)
Electrical isolation: 500 V (E-bus/signal voltage)
Current consumption power contacts:
Current consumption E-bus: typ. 170 mA
Bit width in the process image: inputs: 8 byte
Special features: standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring
Weight: approx. 60 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all ESxxxx terminals
