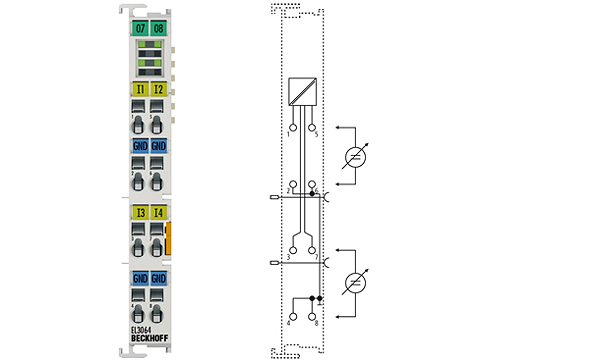

EL3064 | 4-channel analog input terminal 0…10 V, single-ended, 12 bit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EL3064 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitised with a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3064 EtherCAT Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.

Technical parameters

Number of inputs: 4 (single-ended)
Power supply: via the E-bus
Technology: single-ended
Signal voltage: 0…10 V
Distributed clocks:
Internal resistance: > 130 kΩ
Input filter limit frequency: 1 kHz
Dielectric strength: max. 30 V
Conversion time: 0.625 ms default setting, configurable, multiplex
Resolution: 12 bit (16 bit presentation incl. sign)
Measuring error: < ±0.3 % (relative to full scale value)
Electrical isolation: 500 V (E-bus/signal voltage)
Current consumption power contacts:
Current consumption E-bus: typ. 130 mA
Bit width in the process image: inputs: 16 byte
Special features: activatable FIR/IIR filters, limit value monitoring
Weight: approx. 60 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX
Ex-Marking: II 3 G Ex nA IIC T4 Gc
