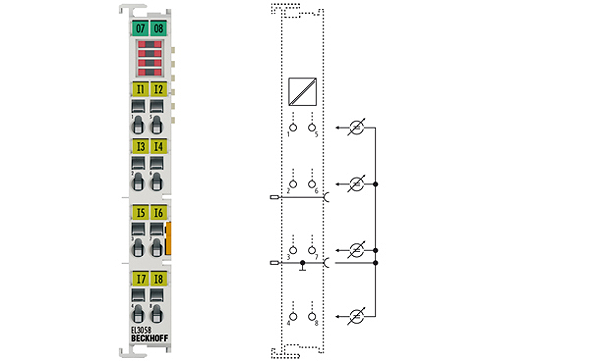

Beckhoff EL3058
EL3058 | 8-channel analog input terminal 4…20 mA, single-ended, 12 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL3058 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitised to a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The input electronics are independent of the supply voltage of the power contacts. The EL3058 EtherCAT Terminal combines eight channels in one housing. The power contacts are connected through. The 0 V power contact is used as reference ground connection for the inputs. The signal state of the EtherCAT Terminal is indicated by light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
Technical parameters
| Number of inputs: | 8 (single-ended) |
| Technology: | single-ended |
| Signal current: | 4…20 mA |
| Distributed clocks: | – |
| Internal resistance: | typ. 85 Ω |
| Input filter limit frequency: | 1 kHz |
| Dielectric strength: | max. 30 V |
| Conversion time: | 1.25 ms default setting, configurable, multiplex |
| Resolution: | 12 bit (16 bit presentation incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | inputs: 32 byte |
| Configuration: | no address or configuration setting required |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
