Beckhoff EL3041

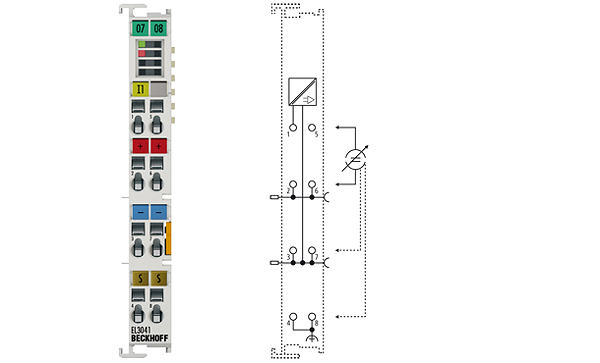

EL3041 | 1-channel analog input terminal 0…20 mA, single-ended, 12 bit
Description
The job of the EL3041 analog input terminal is to supply power to measuring transducers located in the field, and to transmit analog measurement signals with electrical isolation to the automation device. The voltage for the sensors is supplied to the terminals via the power contacts. The power contacts can optionally be supplied with operating voltage in the standard way or via a supply terminal (EL9xxx) with electrical isolation. The input electronics is independent of the supply voltage of the power contacts. The 0 V power contact is the reference potential for the inputs. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
Technical parameters
| Number of inputs: | 1 (single-ended) |
| Power supply: | via the E-bus |
| Technology: | single-ended |
| Signal current: | 0…20 mA |
| Distributed clocks: | – |
| Internal resistance: | typ. 85 Ω |
| Input filter limit frequency: | 1 kHz |
| Dielectric strength: | max. 30 V |
| Conversion time: | 0.625 ms default setting, configurable, multiplex |
| Resolution: | 12 bit (16 bit presentation incl. sign) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Bit width in the process image: | inputs: 4 byte |
| Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
