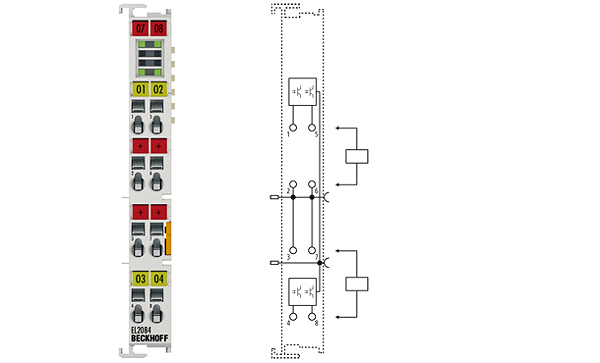

Image copyright: Beckhoff
Beckhoff EL2084
EL2084 | 4-channel digital output terminal 24 V DC, negative switching
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL2084 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The EtherCAT Terminal has four 0 V (ground) switching outputs and generates load currents with outputs that are resistant to overload and short-circuit. It contains four channels that indicate their signal state by means of light emitting diodes.
Technical parameters
| Connection technology: | 2-wire |
| Number of outputs: | 4 |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic, inductive, lamp load |
| Distributed clocks: | – |
| Max. output current: | 0.5 A (short-circuit-proof) per channel |
| Short circuit current: | typ. < 7 A |
| Reverse voltage protection: | yes |
| Breaking energy: | < 100 mJ/channel |
| Switching times: | TON: 50 µs, TOFF: 200 µs |
| Current consumption E-bus: | typ. 100 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | typ. 30 mA + load |
| Bit width in the process image: | 4 outputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex |
