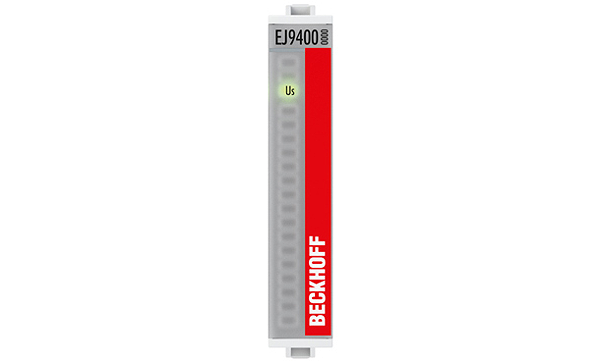

Article image EJ9400

Beckhoff EJ9400

EJ9400 | Power supply plug-in module for E-bus, 2.5 A

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The EJ9400 EtherCAT plug-in module is used in combination with the EJ1101-0022 EtherCAT Coupler to supply the E-bus with power. Data is exchanged between the EtherCAT Coupler and the plug-in module over the E-bus. Each EtherCAT plug-in module draws a certain amount of current from the E-bus (see “Current consumption E-bus” in the technical data). This current is fed into the E-bus by the power supply plug-in module. The maximum output current is 2.5 A.

Technical parameters

Technology: power supply module for E-bus
Short-circuit proof:
Input voltage: 24 V DC (-15 %/+20 %)
Input current: approx. 10 mA + (E-bus/6.25)
Max. output current: 2.5 A
Current consumption E-bus:
Electrical isolation:
Diagnostics in the process image:
Dimensions (W x H x D): 12 mm x 66 mm x 55 mm
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection class: IP 20
Approvals/markings: CE, UL
