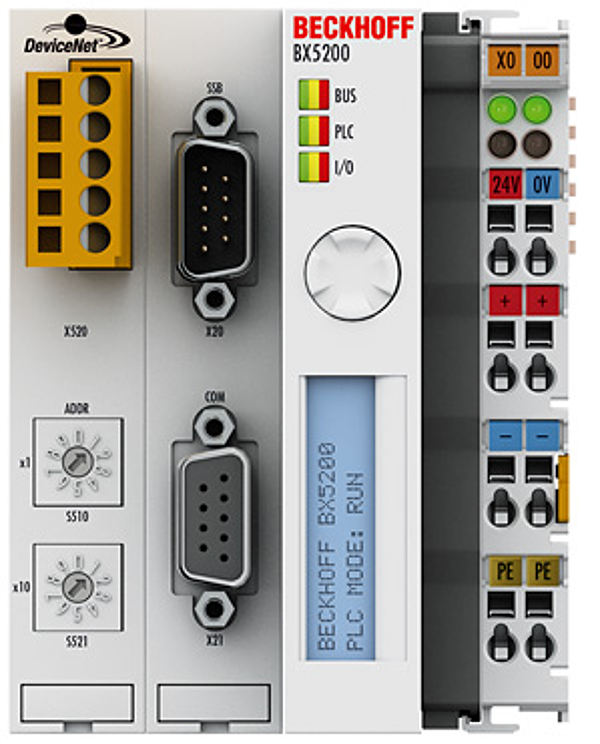

Beckhoff BX5200
BX5200 | DeviceNet Bus Terminal Controller
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BX5200 Bus Terminal Controller has a DeviceNet slave interface. It has automatic baud rate detection up to 500 kbaud and an address selection switch for address assignment. Up to 512 byte of input and 512 byte of output can be exchanged with the controller.
Technical parameters
| Programming: | TwinCAT (via programming interface or fieldbus) |
| Program memory: | 256 kbytes |
| Data memory: | 256 kbytes |
| Remanent data: | 2 kbytes |
| Persistent data: | 1 kbyte |
| Runtime system: | 1 PLC task |
| PLC cycle time: | approx. 1 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming languages: | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online change: | yes |
| Up/down load code: | yes/yes |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
