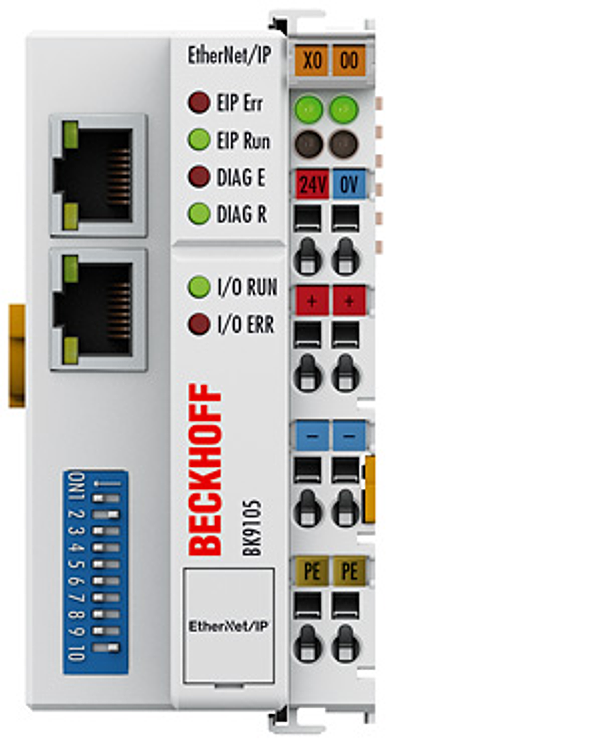

Beckhoff BK9105
BK9105 | EtherNet/IP Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK9105 Bus Coupler connects EtherNet/IP with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.
Technical parameters
| Number of I/O stations: | only limited by IP addresses |
| Number of I/O points: | depending on controller |
| Data transfer medium: | 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) |
| Distance between stations: | 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler |
| Data transfer rates: | 100 Mbit/s |
| Topology: | line or star wiring |
| Cascading: | up to 20 BK9105 or max. line length 2 km |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
