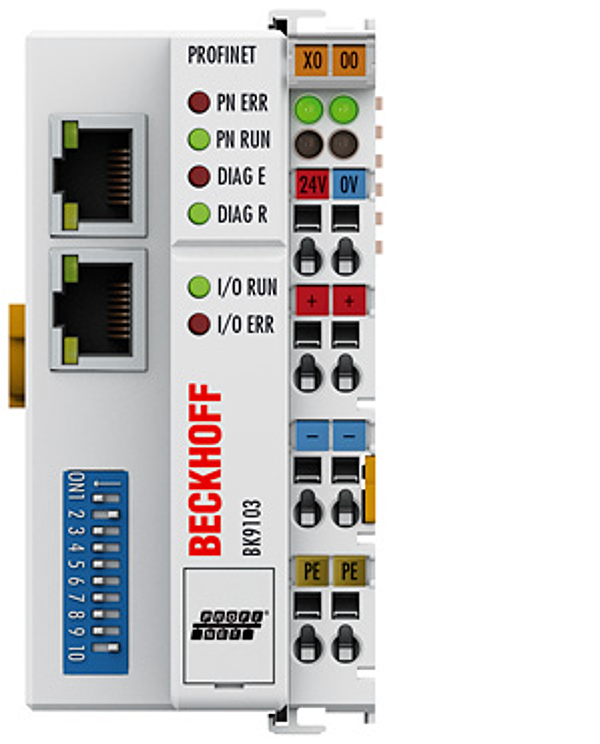

Article image BK9103

Beckhoff BK9103

BK9103 | PROFINET Bus Coupler

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The BK9103 Bus Coupler connects PROFINET RT with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.

Technical parameters

Number of I/O stations: only limited by IP addresses
Number of I/O points: depending on controller
Data transfer medium: 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s)
Distance between stations: 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler
Data transfer rates: 100 MBit/s
Topology: line or star wiring
Cascading: up to 20 BK9103 or max. line length 2 km

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
