BK9055

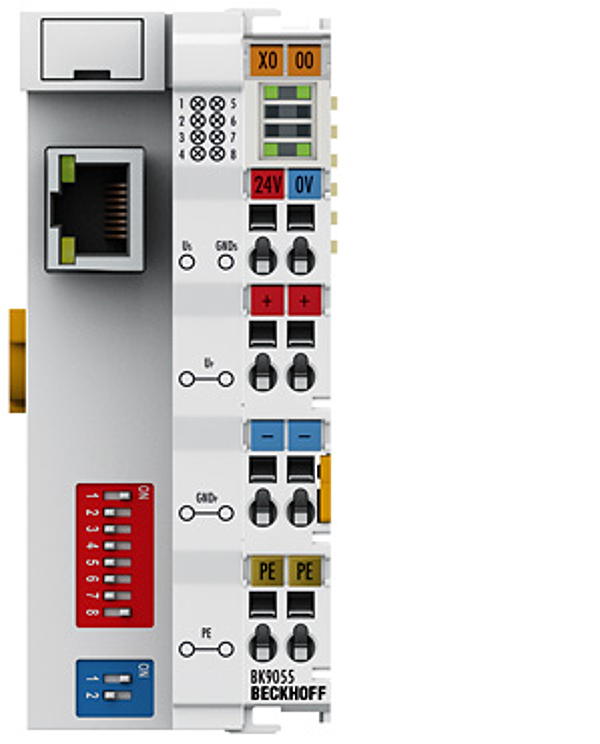

BK9055 | EtherNet/IP Bus Coupler
The “Compact” BK9055 Bus Coupler connects EtherNet/IP with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.
Number of I/O stations: | only limited by IP addresses |
Number of I/O points: | depending on controller |
Data transfer medium: | 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) |
Distance between stations: | 100 m between hub/switch and Bus Coupler |
Data transfer rates: | 100 Mbit/s |
Topology: | star wiring |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
