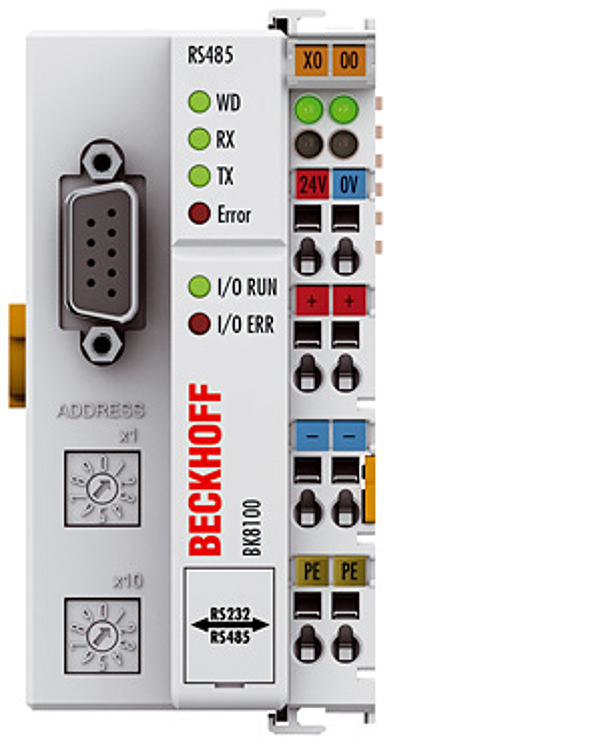

Beckhoff BK8100
BK8100 | RS485/RS232 Bus Couplers
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK8100 Bus Coupler usess the physics of the RS232C (V.24) specification for data transmission. Application of the Bus Coupler with a serial interface is suited to those cases in which the use of a fieldbus system can be omitted. The RS232 interface can be used by any automation device with the corresponding interface to gain access to the Bus Coupler. Data exchange is made via an open, documented protocol.
Technical parameters
| Number of I/O stations: | 1 (peer-to-peer connection) |
| Number of I/O points: | depending on controller |
| Data transfer medium: | shielded copper cable 3 x 0.25 mm² (RS232) |
| Max. cable length: | 15 m |
| Data transfer rates: | 9.6 kbaud, 19.2 kbaud, 38.4 kbaud |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
